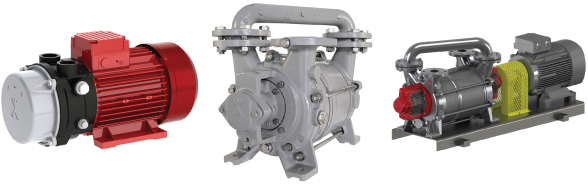

Liquid ring vacuum pump

This liquid ring vacuum pump improve a vacuum using seal liquid and enables stable operation in any process due to the absence of direct friction between Impeller and cylinder. In addition, it enables to select sealing liquid and materials suitable for customer process and facilitates treatment and recovery of condensable gas or suction gas. The liquid ring vacuum pump can be divided into direct coupling pump, 1stage and 2stage types depending on the size and degree of vacuum and exert stable performance in a wide range of vacuum areas up to 33mbar abs. at the atmospheric pressure. In particular, the condensation effects that occur when the inhaled process gas comes in contact with seal liquid can double the performance of the increase in vacuum pump capacity.

Features and Benefits

01 Operational stability in various inhaled gases and risky processes

Providing stable performance against explosiveness, corrosion and gas treatment due to low temperature operation and selection of seal liquid by process


02 Equipped with various models by suction capacity

A wider variety of models, from small to large compared to compared to other typed vacuum pumps(2~18,000m3/hr)

03 Various part materials

Possible to select various materials to prevent corrosion due to the process characteristics (Cast iron / Stainless steel / Hastelloy…)

04 Process-specific system package design and application available

Possible to select seal liquid, material and control suitable for special process against corrosion, explosiveness and toxicity and perform optimized application system package design

05 Simple structure

Easy maintenance and management due to simple structure

Technical Data

V Series (Closed coupled version)

Model Max.suction
capacity		 Ultimate
pressure		 Motor rating Motor speed Sound level
(DIN 45635)		 Weight
(approx.)
　 60Hz m3/hr mbar abs. kw rpm DB(A) kg
V6 11.4 40 0.5 3450 68 9.3
V30 31 33 1.1 3450 68 20
V55 57 33 2.2 3450 69 25
V95 81 33 3 1750 65 59
V130 122 33 4.6 1750 65 67
V155 146 33 6.2 1750 65 83
V255 244 33 8.2 1750 65 111
V330 318 33 13 1750 72 163
V430 445 33 18 1750 72 178

VU Series (Single stage version)

Model Max.suction
capacity		 Ultimate
pressure		 Motor rating Motor speed Sound level
(DIN 45635)		 Weight
(approx.)
　 60Hz m3/hr mbar abs. kw rpm DB(A) kg
VU20 25 150 1.5 3400 67 20
VU40 56 150 2.2 3400 67 21
VU80 102 150 4 1750 67 48
VU140 174 150 5.5 1750 66 63
VU220 280 150 7.5 1750 66 82
VU300 364 150 11 1750 66 110
VU450 530 150 15 1750 66 155
VU500 625 120 18.5 1750 76 190
VU600 806 120 22 1750 76 215
VU800 1030 120 30 1175 76 360
VU1200 1408 120 45 1175 76 470

VH Series (Double stage version)

Model Max.suction
capacity		 Ultimate
pressure		 Motor rating Motor speed Sound level
(DIN 45635)		 Weight
(approx.)
　 60Hz m3/hr mbar abs. kw rpm DB(A) kg
VH20 25 33 1.5 3400 67 23
VH40 52 33 2.2 3400 67 24
VH60 68 33 3 3400 67 31
VH110 128 33 4 1750 66 62
VH140 174 33 5.5 1750 66 77
VH180 223 33 7.5 1750 66 86
VH300 314 33 11 1750 66 139
VH350 411 33 15 1750 66 151
VH400 475 33 15 1750 66 163
VH500 590 33 22 1750 79 215
VH600 739 33 30 1750 79 240
VH800 1032 33 37 1175 79 450
VH1200 1407 33 45 1175 79 570
VH1600 1717 33 75 1175 79 640
